Action Army AAP01 Stealth Top Rail
Action Army AAP01 Stealth Top Rail
Couldn't load pickup availability
A full-length Picatinny top rail for the Action Army AAP-01 — built specifically for the folding stock kit with aluminium front. Designed from scratch to sit flush, lock solid, and give you a proper mounting platform without compromise.

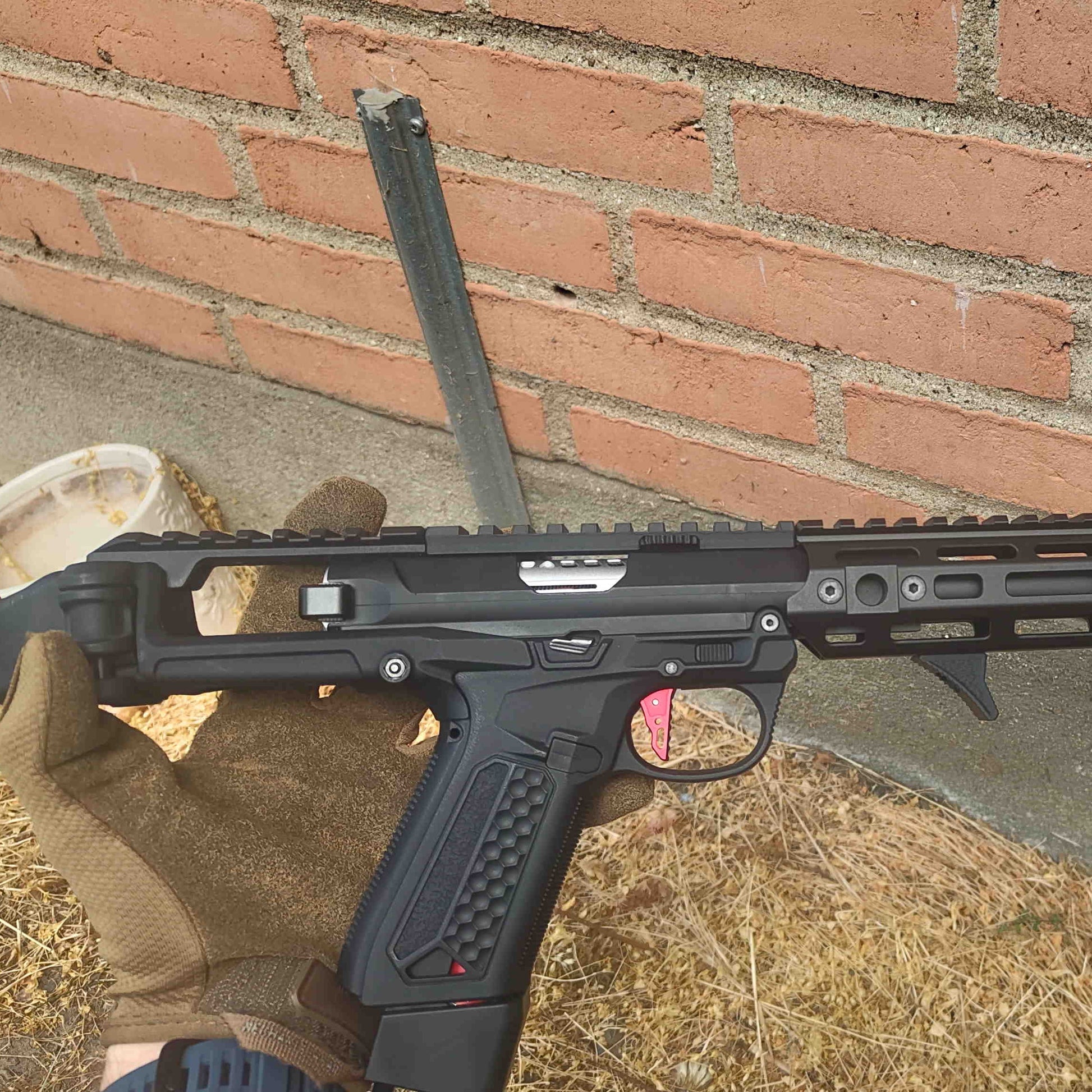

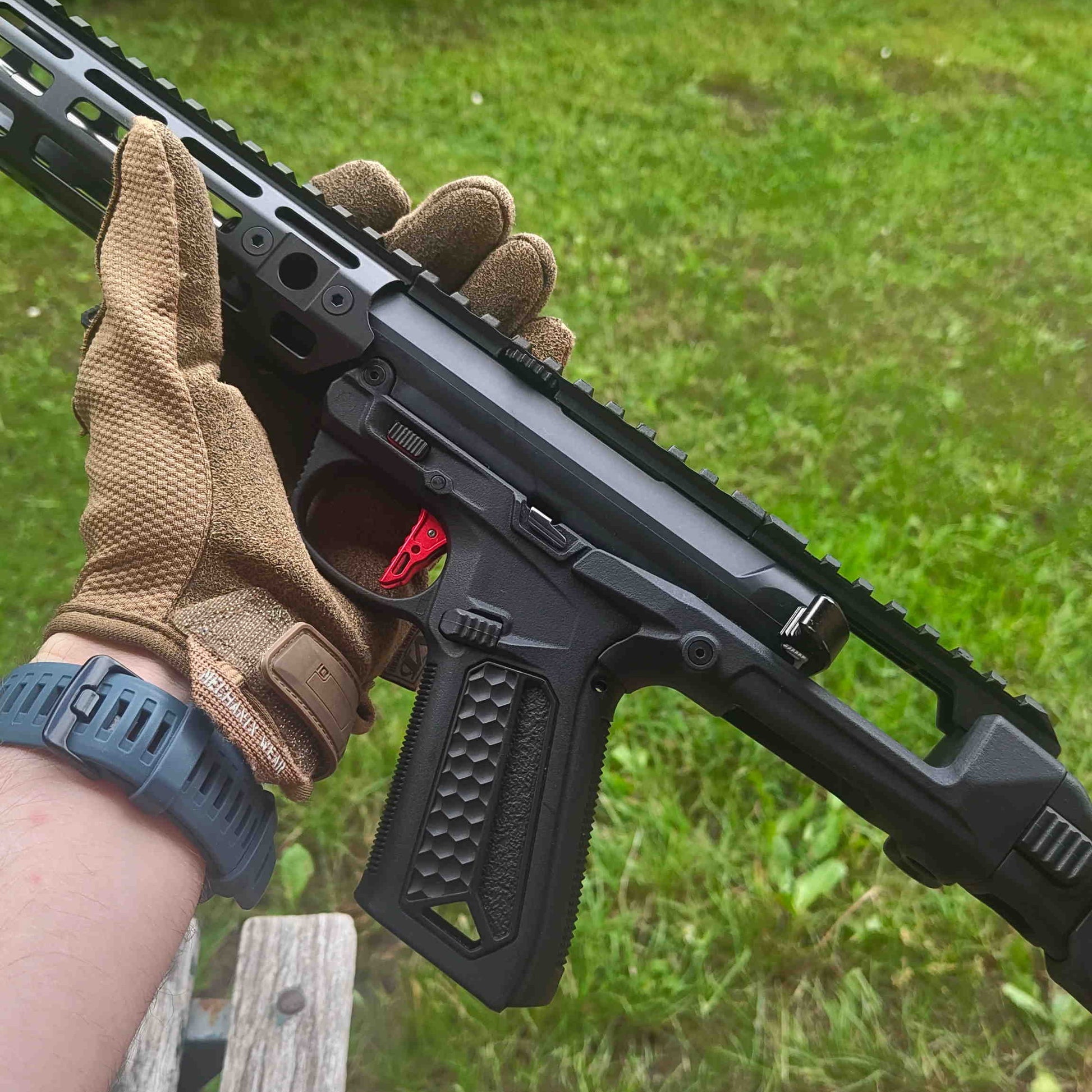

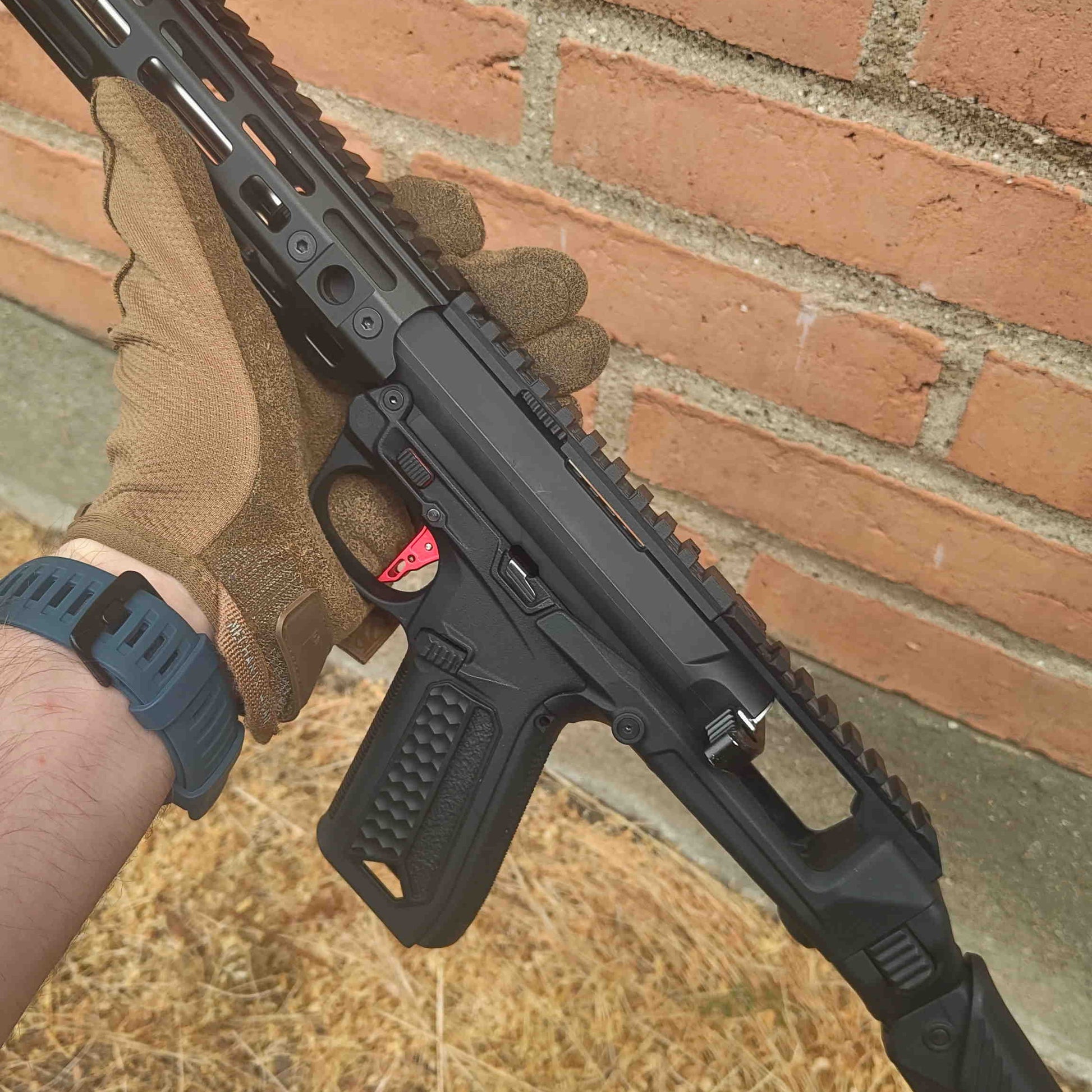

Built for the AAP-01 Carbine Setup
Folding Stock Kit + Aluminium Front
Designed specifically for the AAP-01 with the folding stock kit and aluminium front section installed. It won't fit the standard pistol configuration — this is a carbine build part.
Three-Point Lock
Rear, Front & Top
The rail locks in at three points for a rattle-free, solid fit:
1. Rear bolt — locks into the existing rear stock bolt position where the sight normally sits. No extra holes needed.
2. Front hook — scoops under the aluminium front rail to anchor the forward end.
3. Top bolts — 2× CS M3×8mm bolts through the top lock everything down flush.

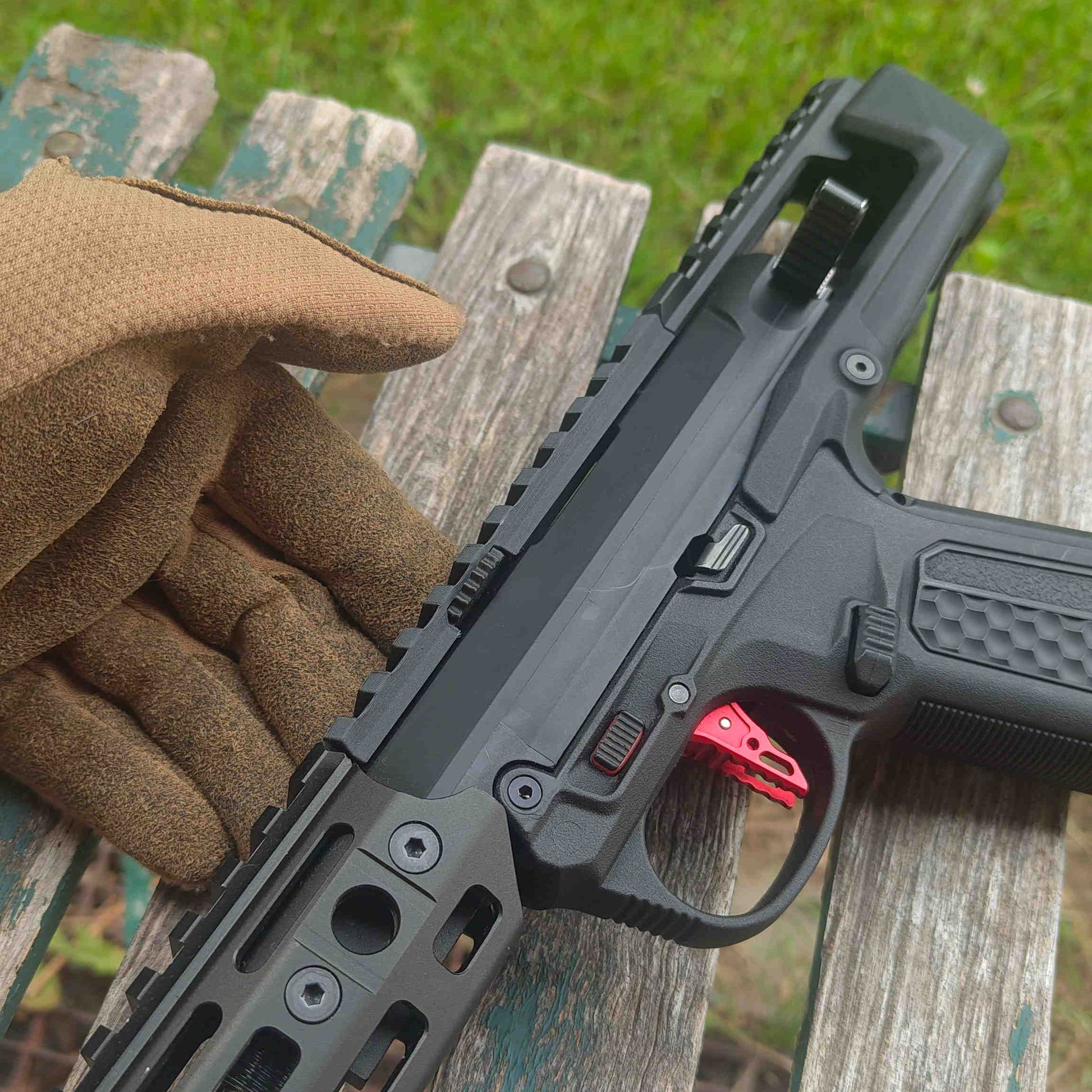

Sits Flush, Looks Clean
Proper Rail, Not a Compromise

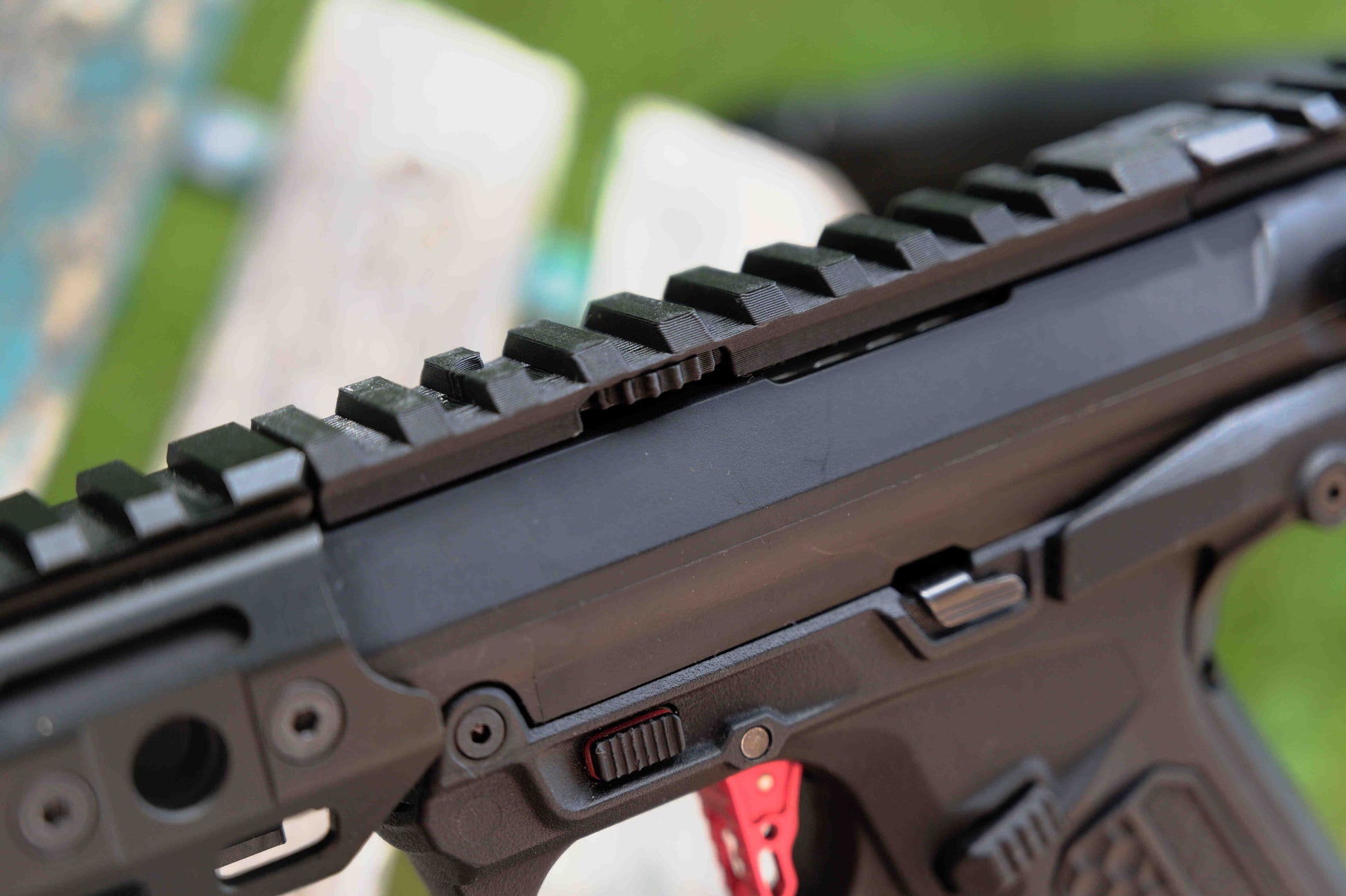

Designed to sit flush against the receiver with no visible gap. The Picatinny profile is correctly spaced — standard scope mounts, red dots and accessories fit without modification.
TDC Version — Late Development
The TDC version is currently in late-stage development and being tested. It is not yet available but is close — watch this page for updates.
External Hop-Up Adjustment
The TDC version is designed specifically for the Hardon hop-up house. It uses an external hex bolt to adjust the hop-up from outside the rail — no disassembly needed.
The adjuster wheel features a built-in latch to prevent accidental hop-up changes mid-game. Set it, latch it, forget it.
Hardware
- 2× CS M3×8mm bolts (top lock)
- 1× CS M3x10mm bolt (To folding stock picatini)
Print Settings
- Print with the Picatinny side facing down
- Specially designed cutouts eliminate the need for supports on most of the part
- Support only needed at the front — the small section that scoops under the aluminium front
- 3–5 walls for strength
- 20–30% gyroid infill
This design must be printed at 0.2mm layer height. The Picatinny rail slots and internal cutouts are dimensioned specifically for 0.2mm layers. Using a different layer height will affect fit and function.
What to Print In
Good balance of strength and dimensional accuracy. Handles the stress of bolt mounting without cracking. Preferred brands: Prusament, Bambu Lab, Polymaker. Printed and tested on a Prusa Core One using Polymaker PETG.
Parts are designed with ~0.15–0.3mm clearance. If your printer runs tighter or looser, a light sand on the contact surfaces may be needed for a perfect fit.
Digital delivery: After your payment is confirmed, your file will be delivered automatically. This usually takes 2–5 minutes. You'll receive an email with a download link.
Need help or have questions about the build? Join the community on Discord: discord.com/invite/XFdMX947JP
If this helped your build, consider supporting future releases: buymeacoffee.com/quizcen
Private Use Only
📄 What you can and can't do
This file is for private and personal use only. You may 3D print this model for yourself and share photos of your prints online.
You may not resell this product in any form — printed parts, kits, assembled units, or the digital files themselves.
Full terms: quizcen.com/policies/terms-of-service
