ARP9 Shotgun Shell Magazine - STL

ARP9 Shotgun Shell Magazine

Custom-designed shell mag for practical DIY builds

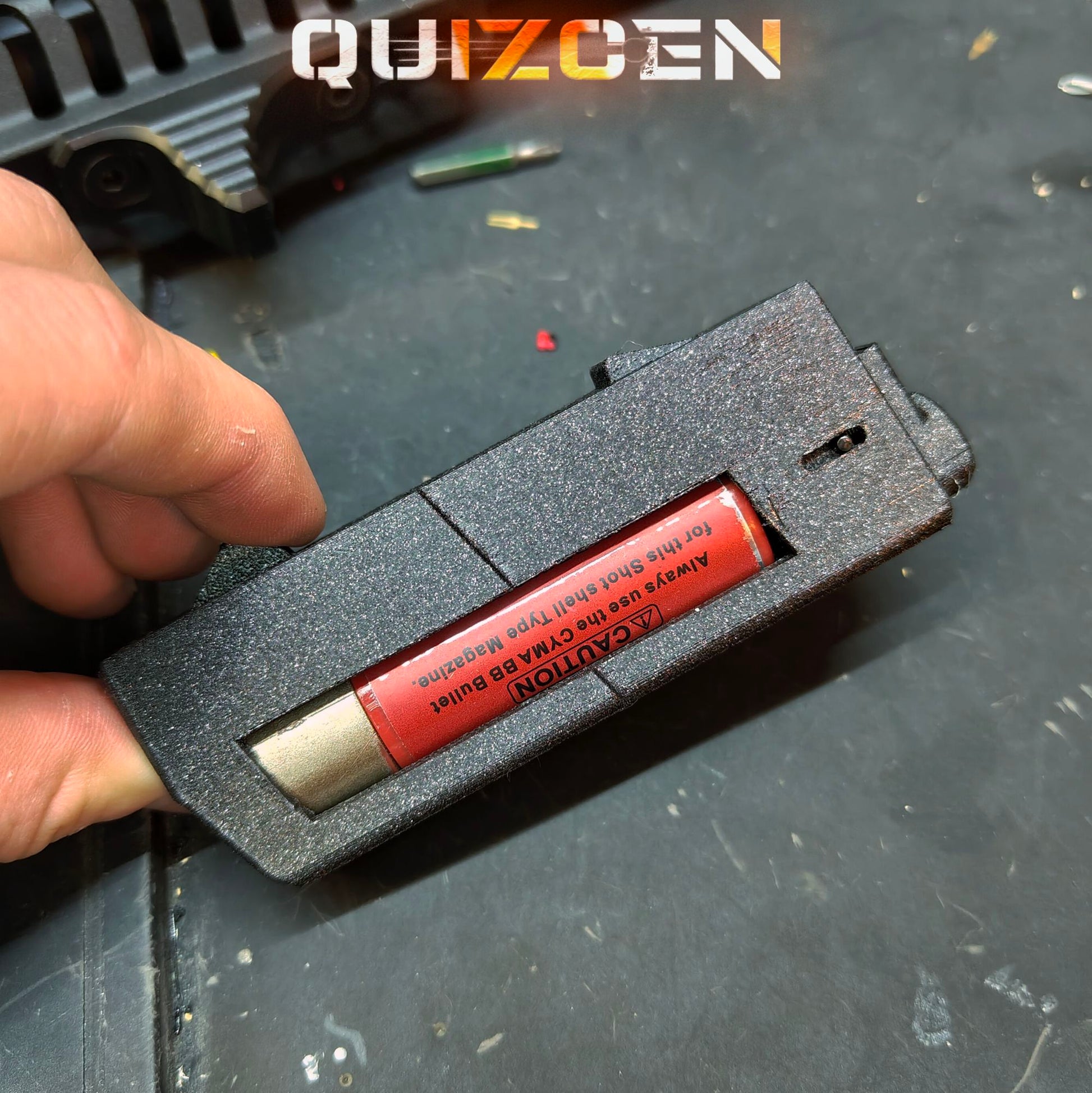

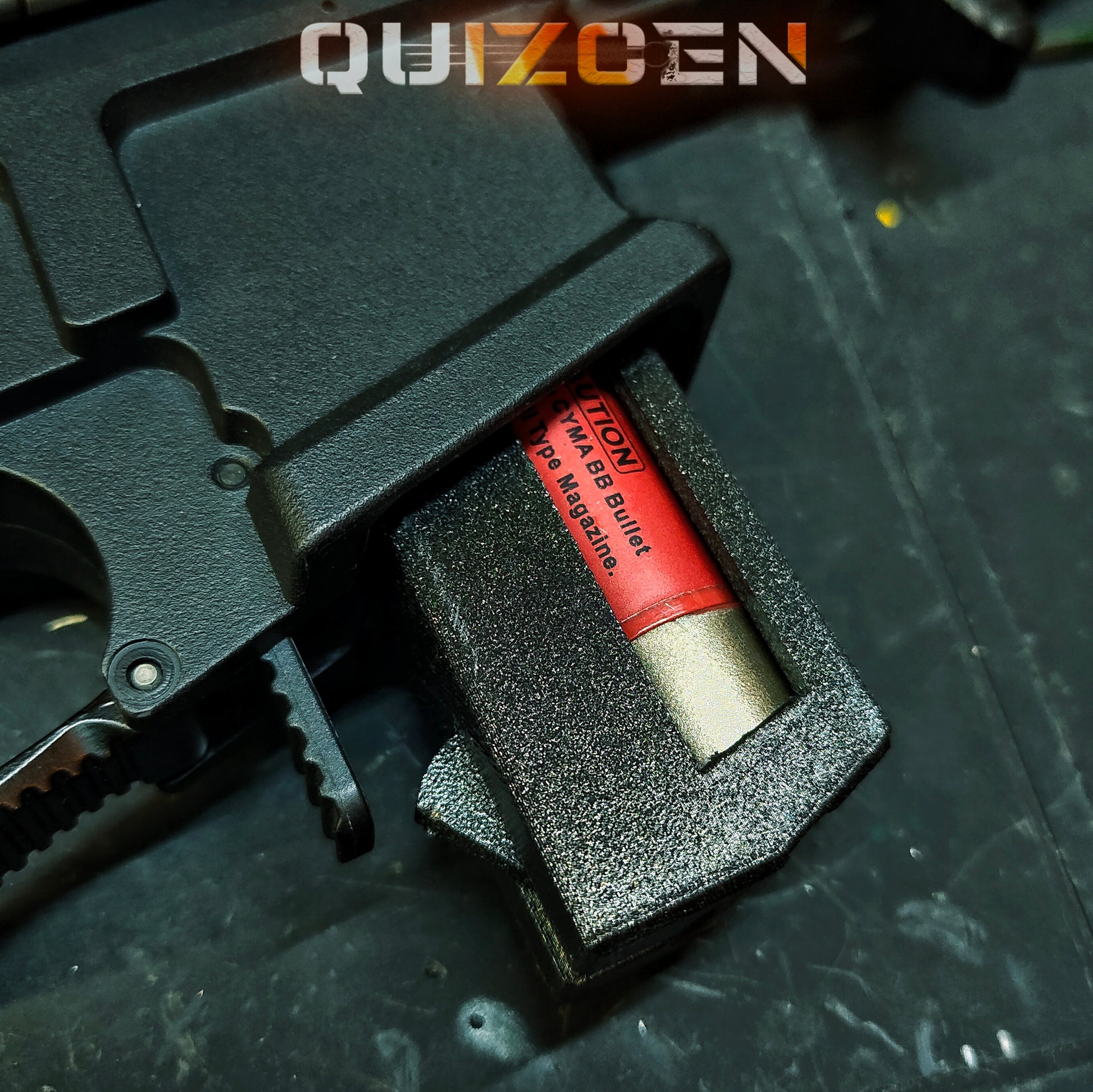

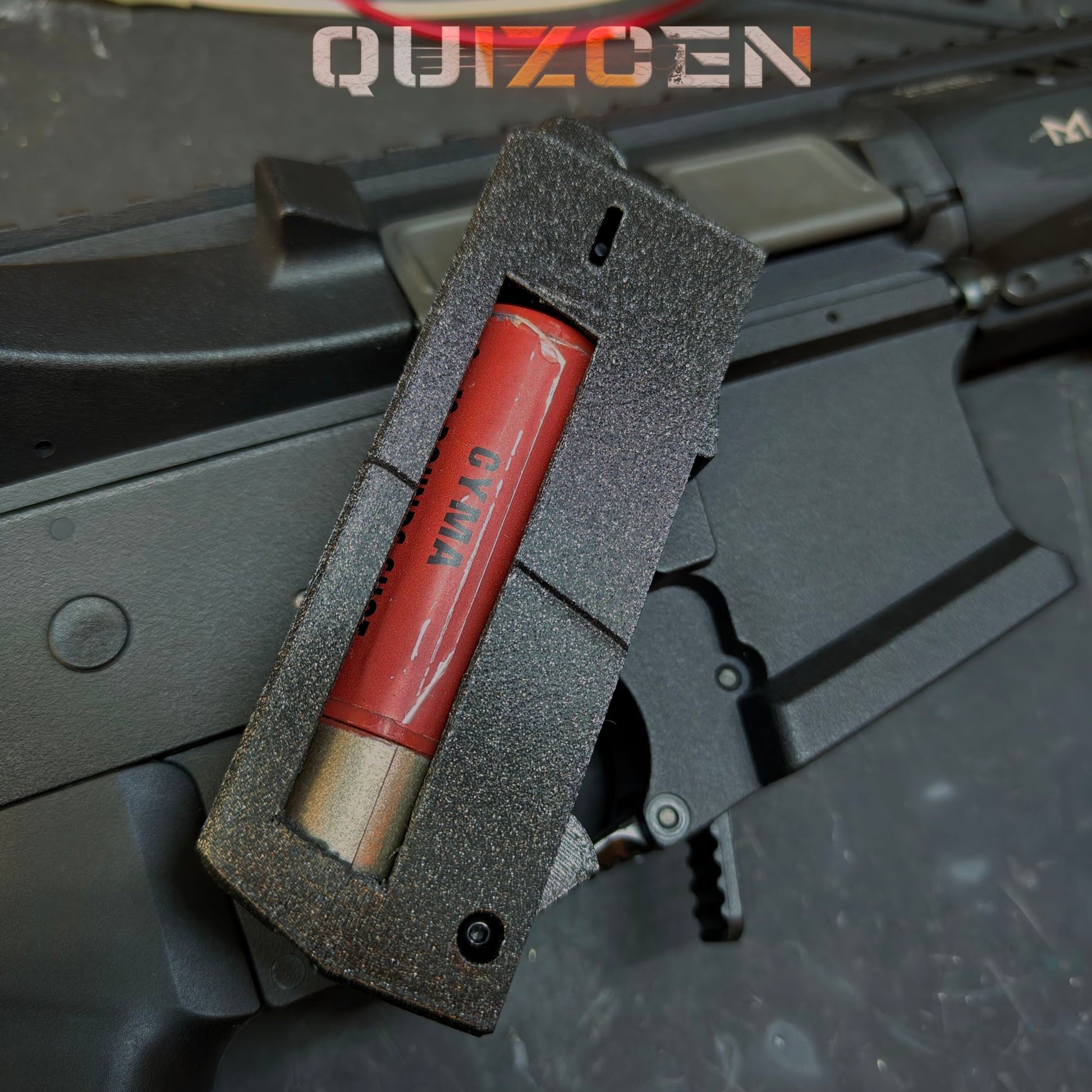

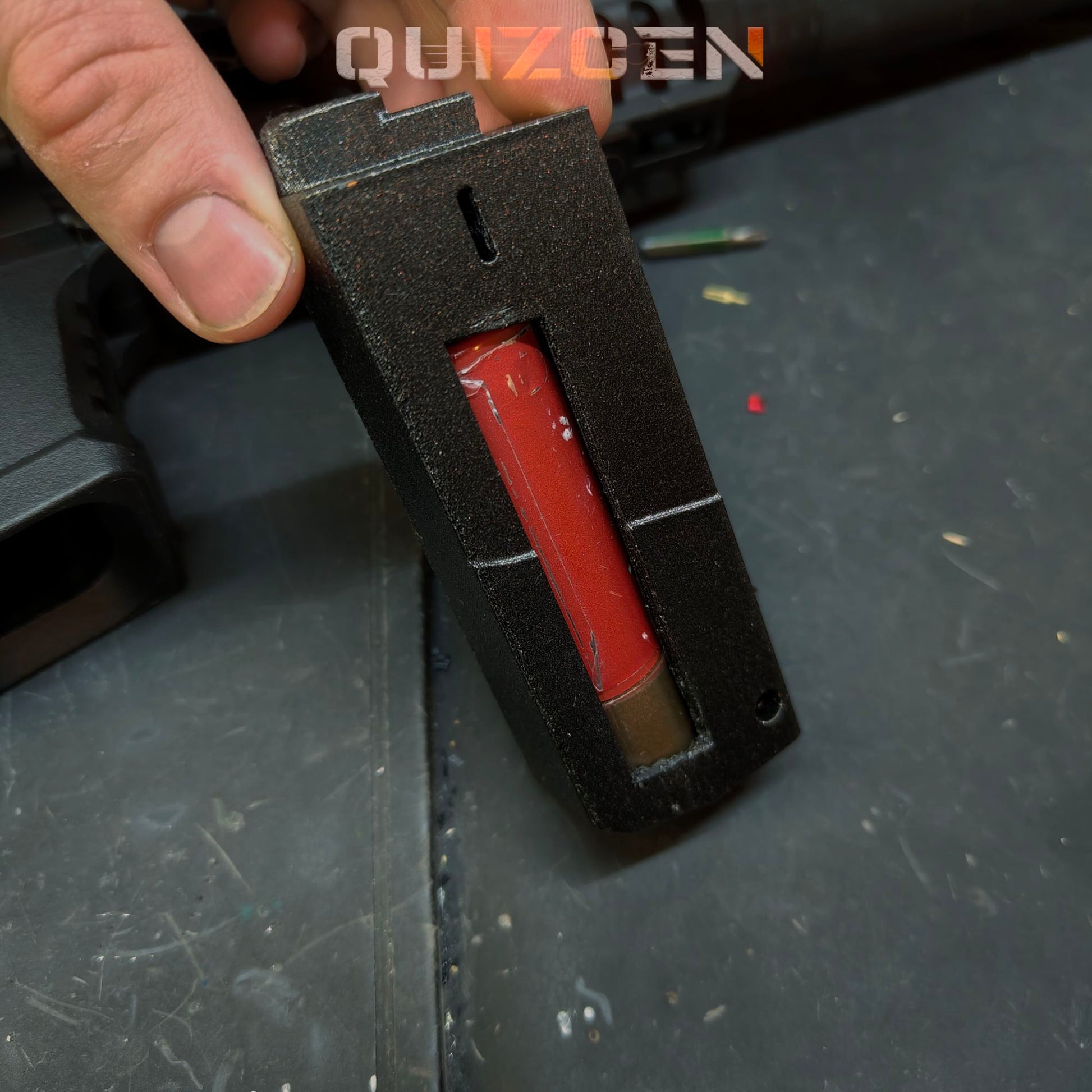

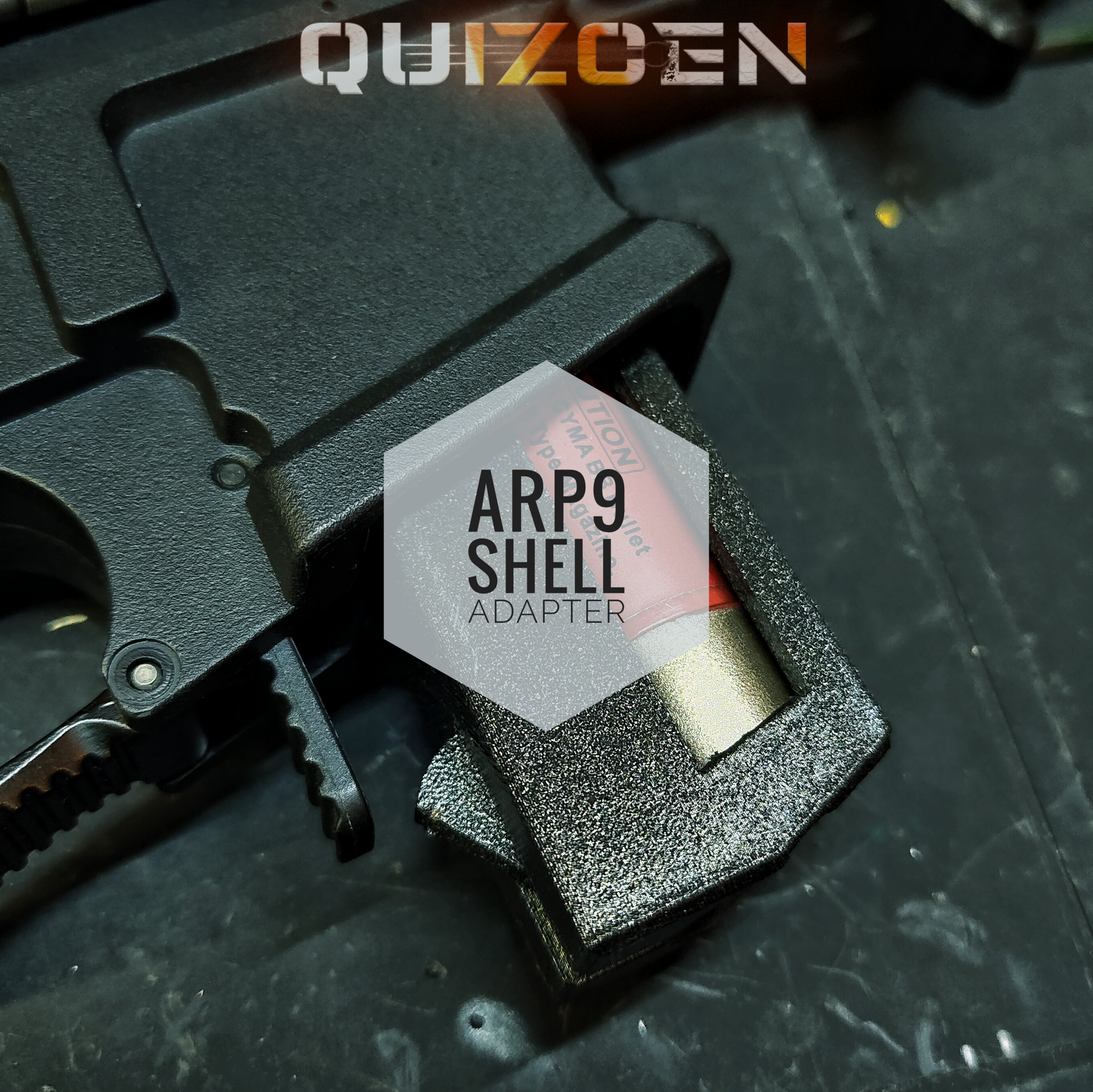

Take your ARP9 to the next level with this custom-designed shell magazine. Securely holds 30BB shotgun shells and allows for fast, smooth reloads.

→Key Features

  • Built-in shell opener releases BBs efficiently
  • Release pin ejects shell automatically

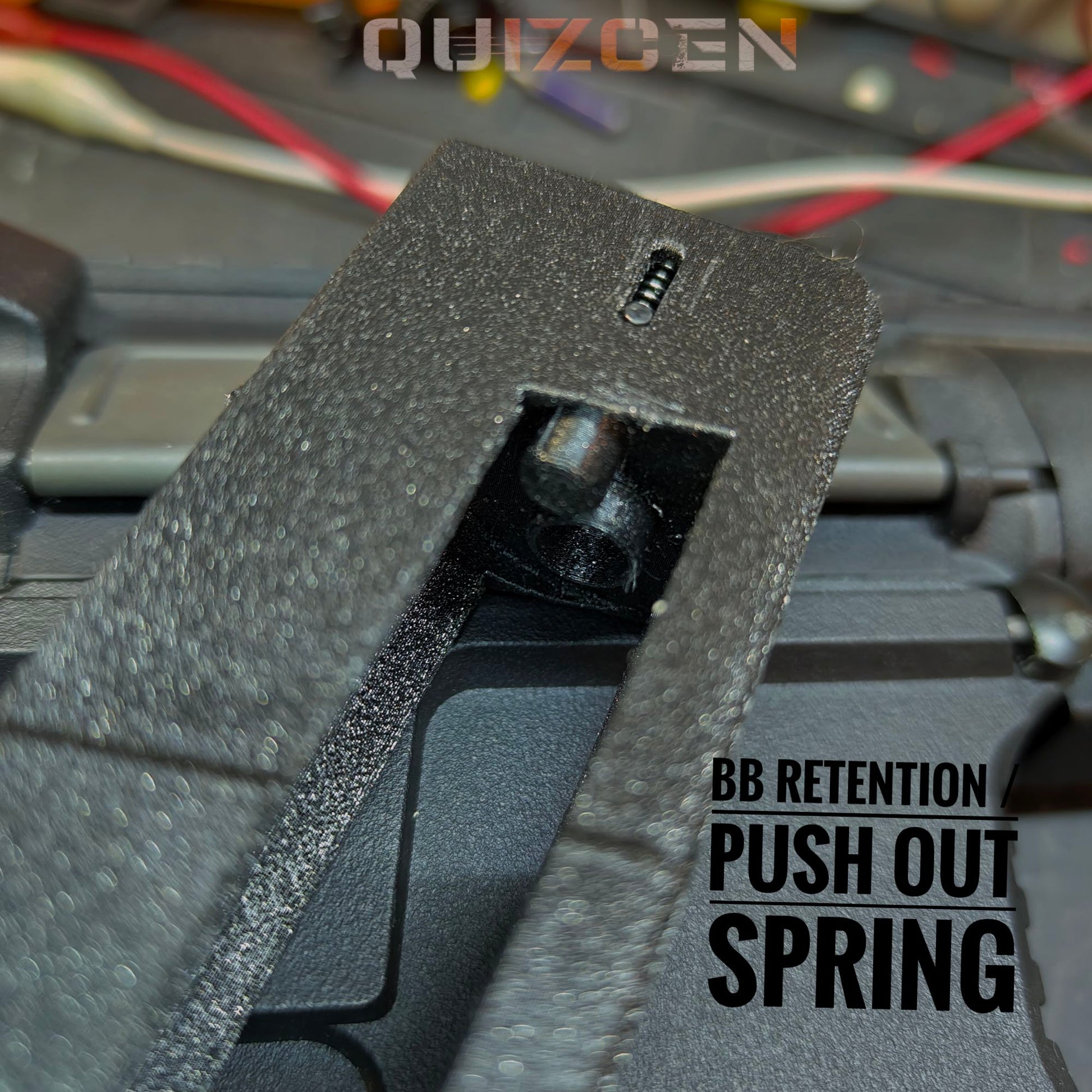

  • Internal BB latch system minimizes loss — only 2 BBs per reload
  • Around 28 usable shots per shell
  • Support-free printing — just import and print
  • Perfect for tinkerers who want shotgun-style reloads
How It Works

Push a shell into the mag and the built-in shell opener releases BBs efficiently. When the mag is empty, hit the release pin to eject the shell automatically. The internal BB latch system minimizes loss — only two BBs are dropped per reload, giving you around 28 usable shots per shell.

Materials & Assembly

Recommended Material: PETG for durability

You'll also need:

  • 1mm diameter × 12mm length rod (shell lock pin)
  • 2mm diameter × 18mm length rod (BB latch)
  • 1x spring (~4.5mm × 8mm)
  • 1x spring (~4.5mm × 18mm)
  • 1x M2.5×12mm bolt
  • 1x M2×6mm bolt
Print Settings & Orientation
Layer Height 0.15mm (critical — do not increase)
Infill 50–60% Gyroid
Supports None needed (integrated support-free design)
Material PETG
Orientation Already optimized in files
Update Log
  • V9 [20/10/2025] — Added support-free design, optimized for FDM printing
  • V7 [13/03/2024] — Initial design upload
