EAS MAX Electronics (IN DEVELOPMENT)
EAS MAX Electronics (IN DEVELOPMENT)
Regular price
€60,00 EUR
Regular price
€60,00 EUR
Sale price
€60,00 EUR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

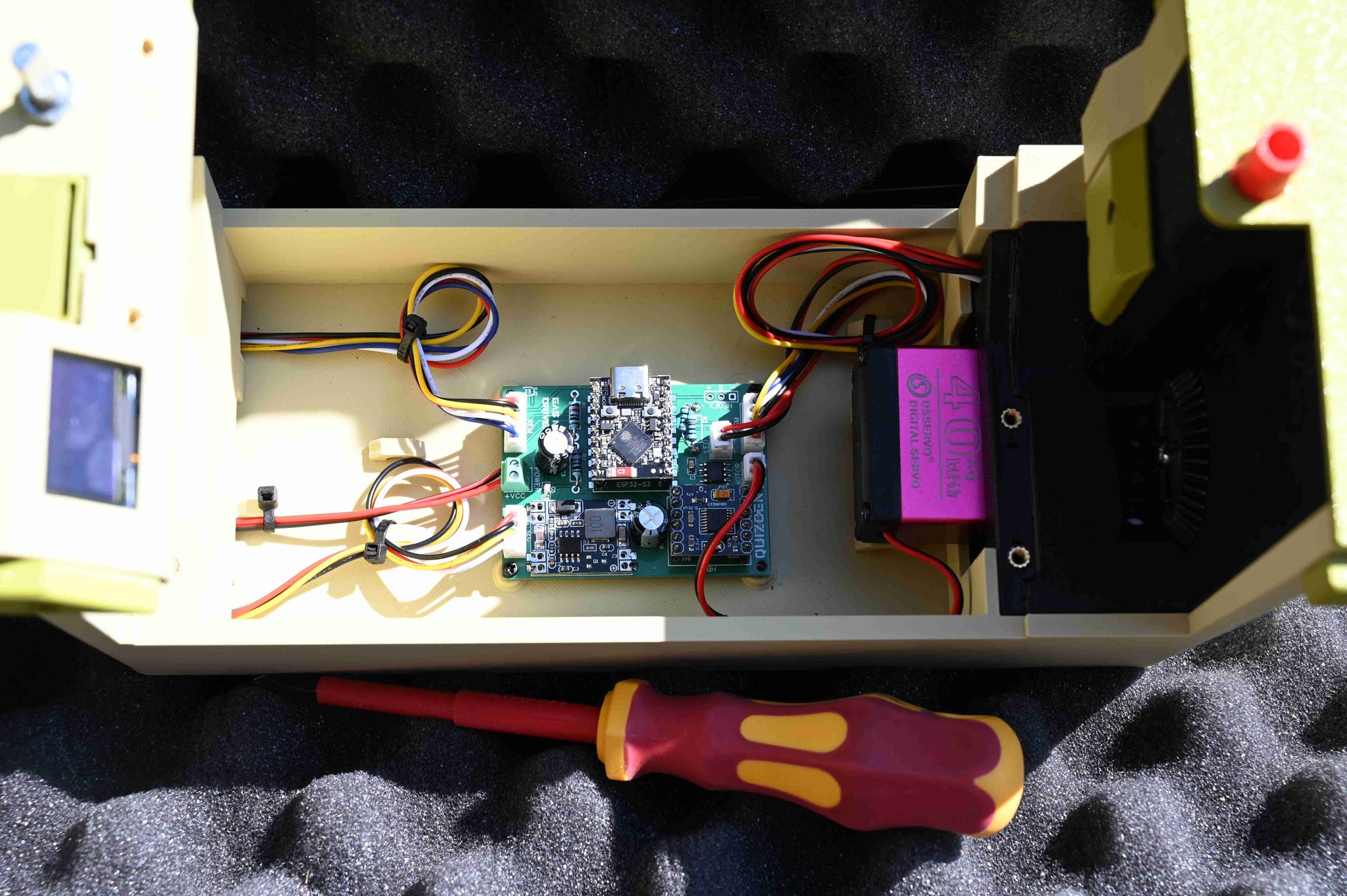

The EAS MAX Electronics Kit is everything you need to bring the EAS MAX speed loader to life — all peripheral components pre-wired with PH 2.0 connectors, ready to plug straight into the EAS MAX PCB. No crimping, no soldering, no guesswork.
Designed to pair directly with the EAS MAX PCB Module — the fully assembled and pre-flashed control board sold separately.
WHAT'S INCLUDED +
LCD Display PH 2.0 — 4-PIN
0.96" OLED — pre-wired and ready to plug in.
Rotary Encoder PH 2.0 — 5-PIN
Navigation and menu control — pre-wired and ready to plug in.
Analog Sensor + Nozzle Switch PH 2.0 — 5-PIN
Both the analog BB counting sensor and the nozzle switch share a single 5-pin PH 2.0 connector. The sensor detects BBs as they pass through the feed path. The nozzle switch detects magazine insertion.
UV LED PH 2.0 — 2-PIN
Paired with the analog sensor — mounts on the opposite side of the BB path. The UV LED illuminates the sensor gate so the analog sensor can accurately detect each BB as it passes. Pre-wired and ready to plug in.
DC Motor PH 2.0 — 2-PIN
40kg class, pre-modded for continuous rotation — pre-wired and ready to plug in. Drives the BB feed system straight out of the box.
NOT INCLUDED +
- PCB — sold separately as the EAS MAX PCB Module
- Power wire — Deans connector with fuse sold separately as the EAS MAX Power Wire Kit
- 7.4V LiPo battery
- 3D printed parts — sold separately as the EAS MAX STL file pack
WARRANTY & LIABILITY
Components carry a 14-day warranty covering manufacturing defects from the date of delivery. This does not cover damage from incorrect wiring, reversed polarity, wire breakage, or misuse. The DC motor carries no warranty — it is a mechanical component subject to wear and is sold as-is.
Components carry a 14-day warranty covering manufacturing defects from the date of delivery. This does not cover damage from incorrect wiring, reversed polarity, wire breakage, or misuse. The DC motor carries no warranty — it is a mechanical component subject to wear and is sold as-is.
COMPATIBILITY
All components are wired and sized for the EAS MAX system only. Not guaranteed compatible with earlier EAS versions without modification.
Pair with the EAS MAX PCB Module for a complete electronics setup — just add the power wire, battery, and printed parts.
Sold for personal DIY use only. Not for resale or commercial use.
