EAS MAX PCB MODULE (IN Development)
EAS MAX PCB MODULE (IN Development)
Couldn't load pickup availability

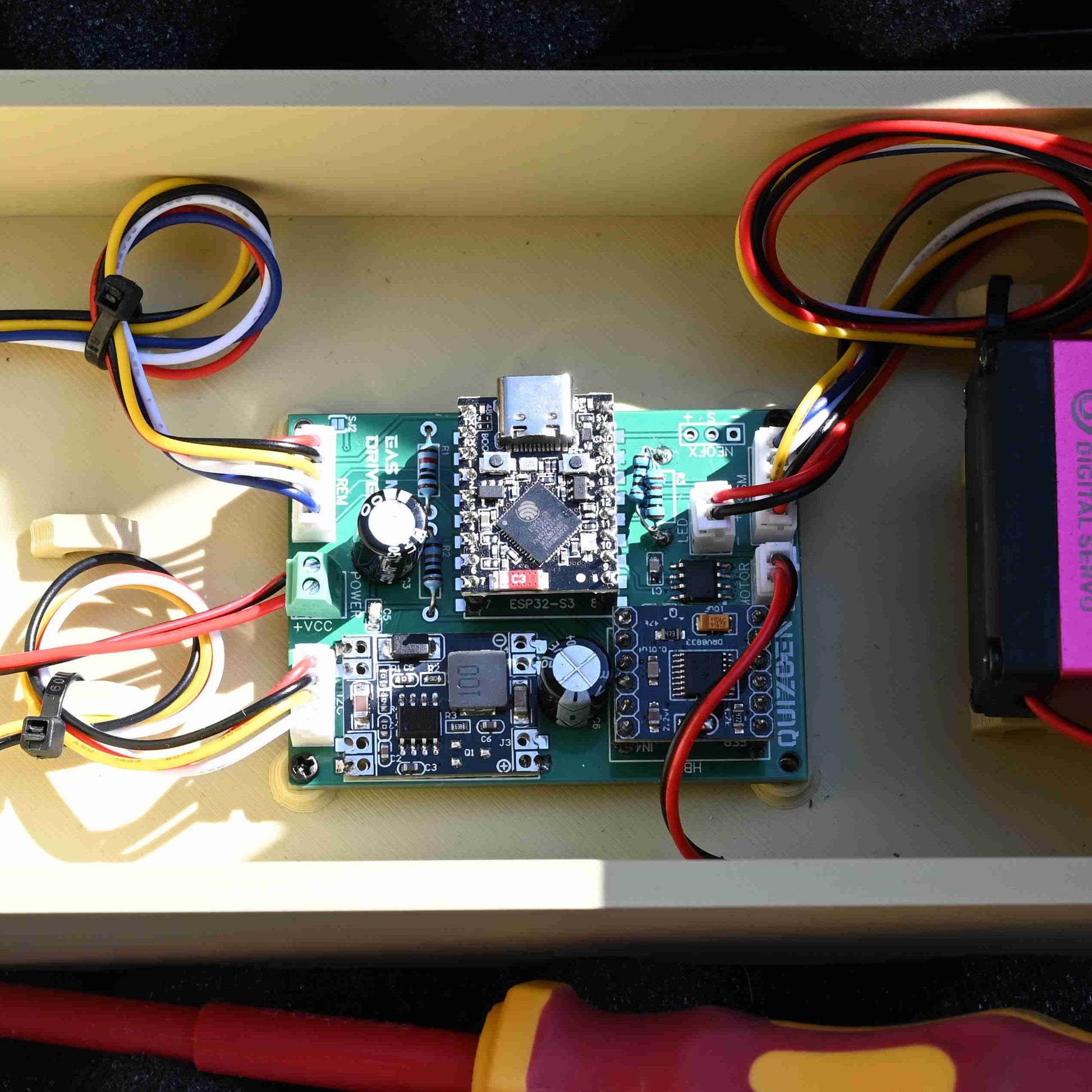

The EAS MAX PCB Module is the fully assembled, ready-to-wire electronics board for the EAS MAX speed loader system. Every component is soldered — ESP32-S3 SuperMini, DRV8833 motor driver, voltage regulator, all connectors and headers. You just wire up your motor, display, encoder, and sensor and you're done.
No soldering required. No component sourcing. Plug in your peripherals and build.

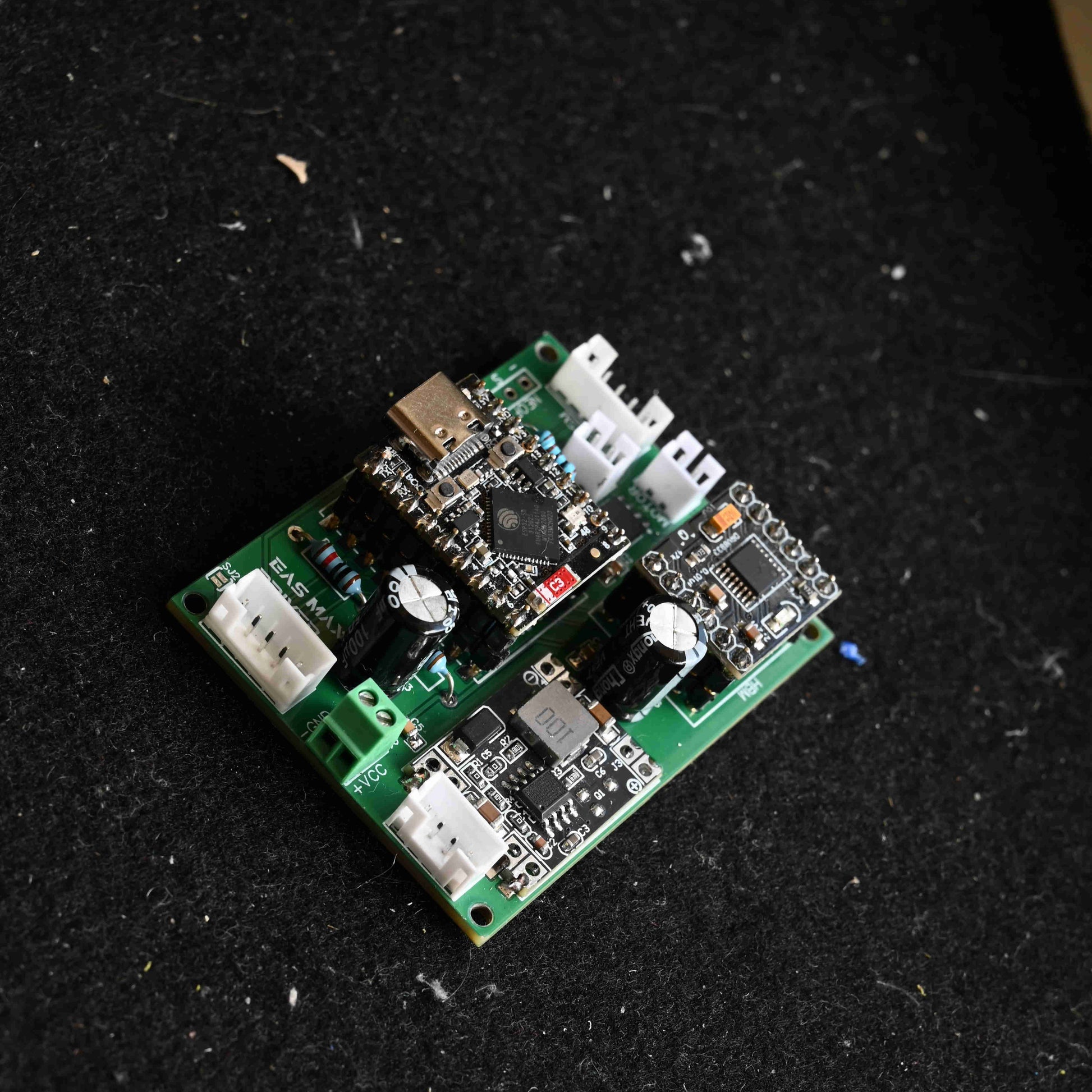

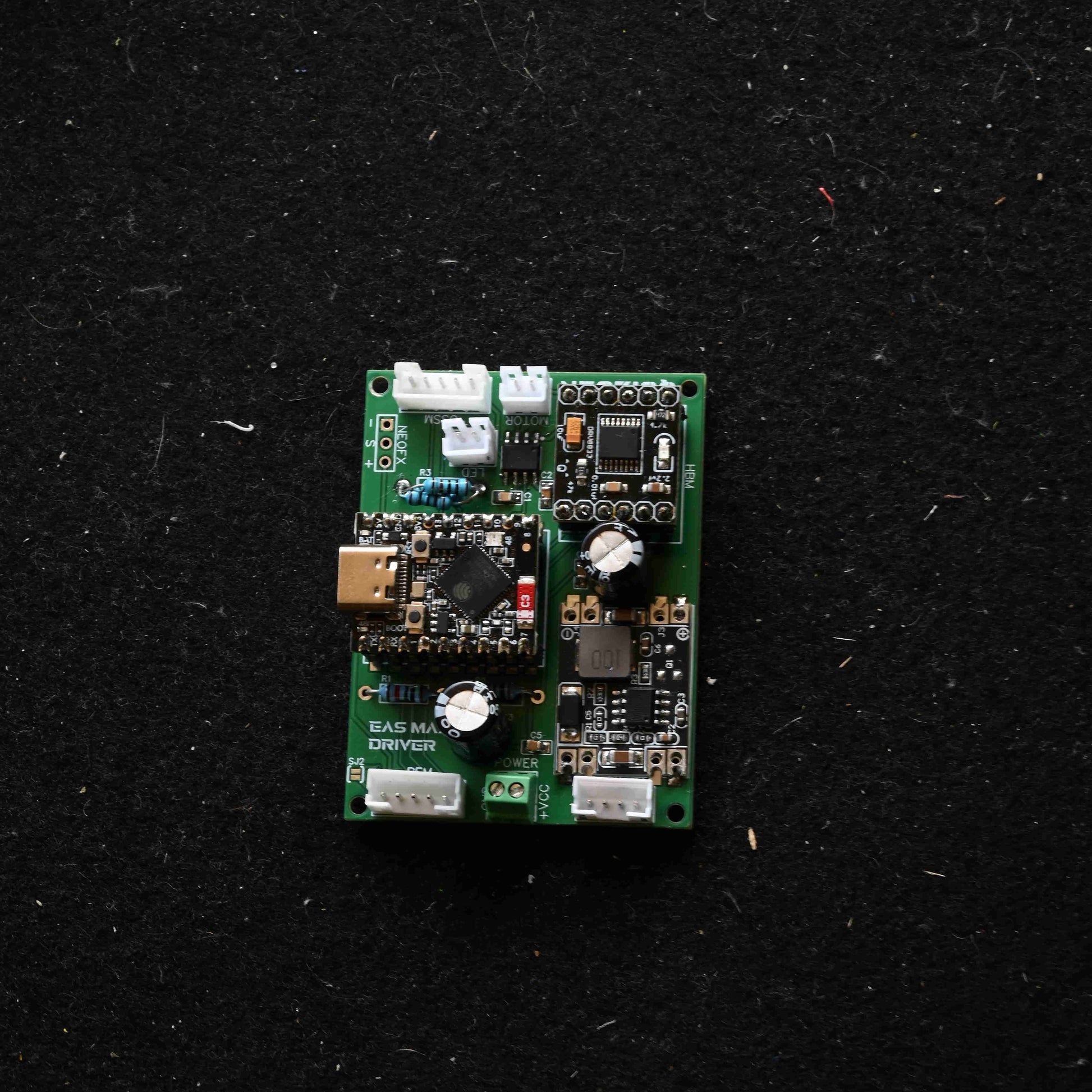

WHAT'S ON THE BOARD +
- ESP32-S3 SuperMini — soldered and seated
- DRV8833 dual H-bridge motor driver — soldered and seated
- Voltage regulator — onboard, handles 7.4V input
- All PH 2.0 connectors — motor, OLED display, rotary encoder, optical sensor
- Screw terminals — power input (Deans)
- 2.54mm headers — ESP32-S3 and DRV8833 breakout
Everything required to run the EAS MAX electronics is already on the board. Wire up your peripherals and flash the firmware.
SPECIFICATIONS +
NOT INCLUDED — SOURCE SEPARATELY +
- DC motor (40kg servo class, modified for continuous rotation)
- 0.96" OLED display
- Rotary encoder
- Optical BB counting sensor
- LED
- 7.4V LiPo battery + Deans connector
- 3D printed parts — sold separately as the EAS MAX STL file pack
Need all the electronics in one go? The EAS MAX Electronics Kit includes the LCD, rotary encoder, motor, sensor, and LED — everything you need to complete the build alongside this module.
This module carries a 14-day warranty covering manufacturing defects and solder quality from the date of delivery. If you modify the board, attempt to reflow, or add components yourself, warranty is void. Do not exceed the rated input voltage.
The module ships with firmware pre-flashed and ready to run. On first power-up I recommend checking whether a newer version is available — the latest firmware is always published at WWW.PLACEHOLDER.
Flashing instructions and update notes are posted on Discord: discord.com/invite/XFdMX947JP
