EAS MAX PCB KITS

EAS MAX PCB KITS

€5,00 EUR
€5,00 EUR €5,00 EUR
Sale Sold out
Shipping calculated at checkout.

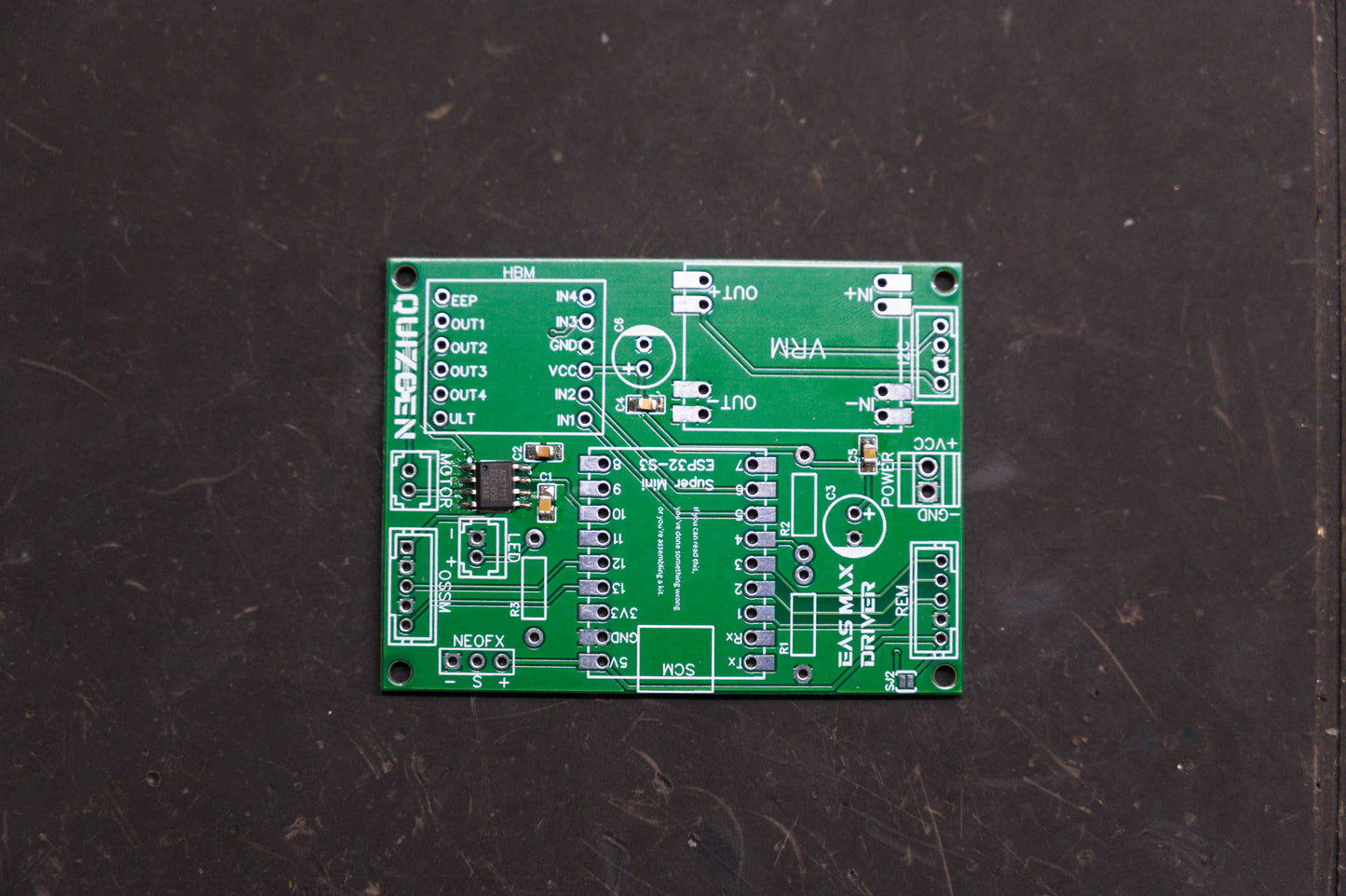

The EAS MAX PCB is the custom electronics board at the heart of the EAS MAX speed loader system. It handles motor control, BB counting, display output, and user input in a single compact layout that mounts directly into the printed housing.

This listing is for the PCB kit only — no 3D printed parts, no battery. The STL file pack is sold separately. Three versions are available depending on how much you want to solder yourself.

WANT TO MAKE YOUR OWN PCB?

The Gerber files for the EAS MAX PCB are available separately. Download them and have the board manufactured at your preferred PCB supplier — JLCPCB, PCBWay, or similar. You source and solder all components yourself using the parts list.

Gerber files: quizcen.com/products/eas-max-gerber-files

CHOOSE YOUR VERSION

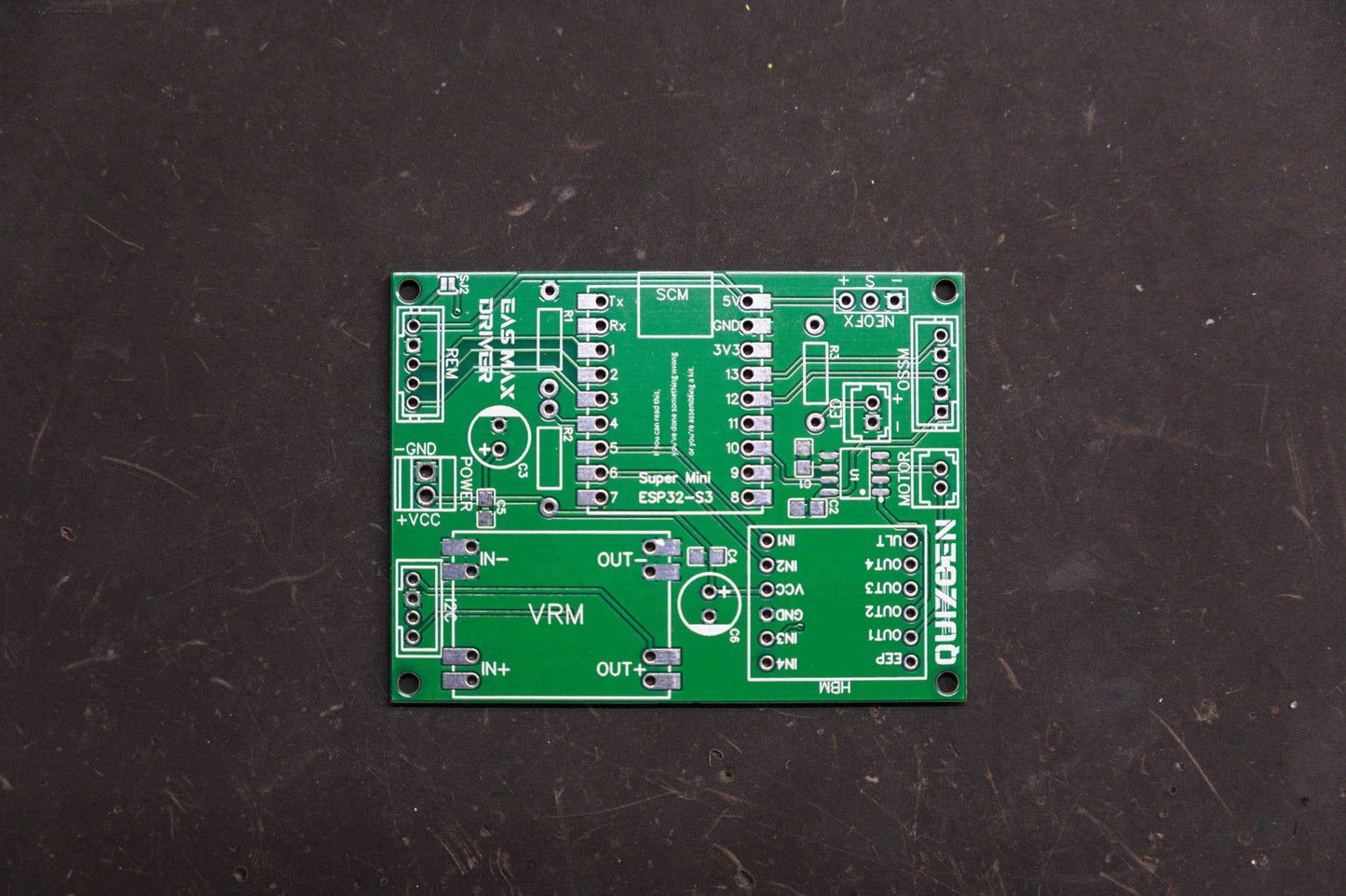

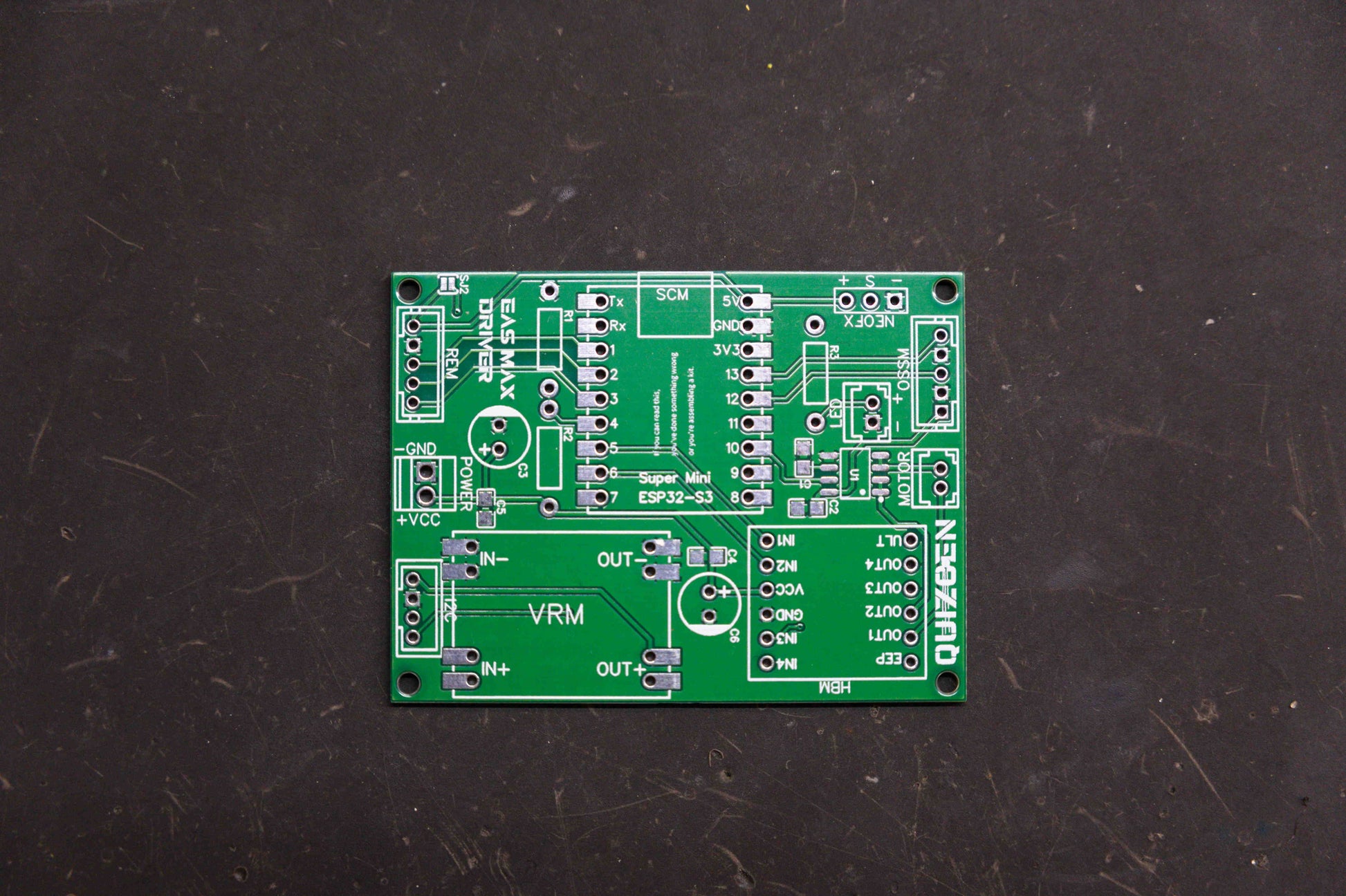

BAREBONE PCB
Unpopulated PCB only. All components must be sourced and soldered by you. For experienced builders who want full control or already have components on hand.
PCB WITH SMD SOLDERED
PCB with all surface-mount components pre-soldered. You solder the through-hole connectors and modules yourself. A good middle ground if you're comfortable with basic soldering.

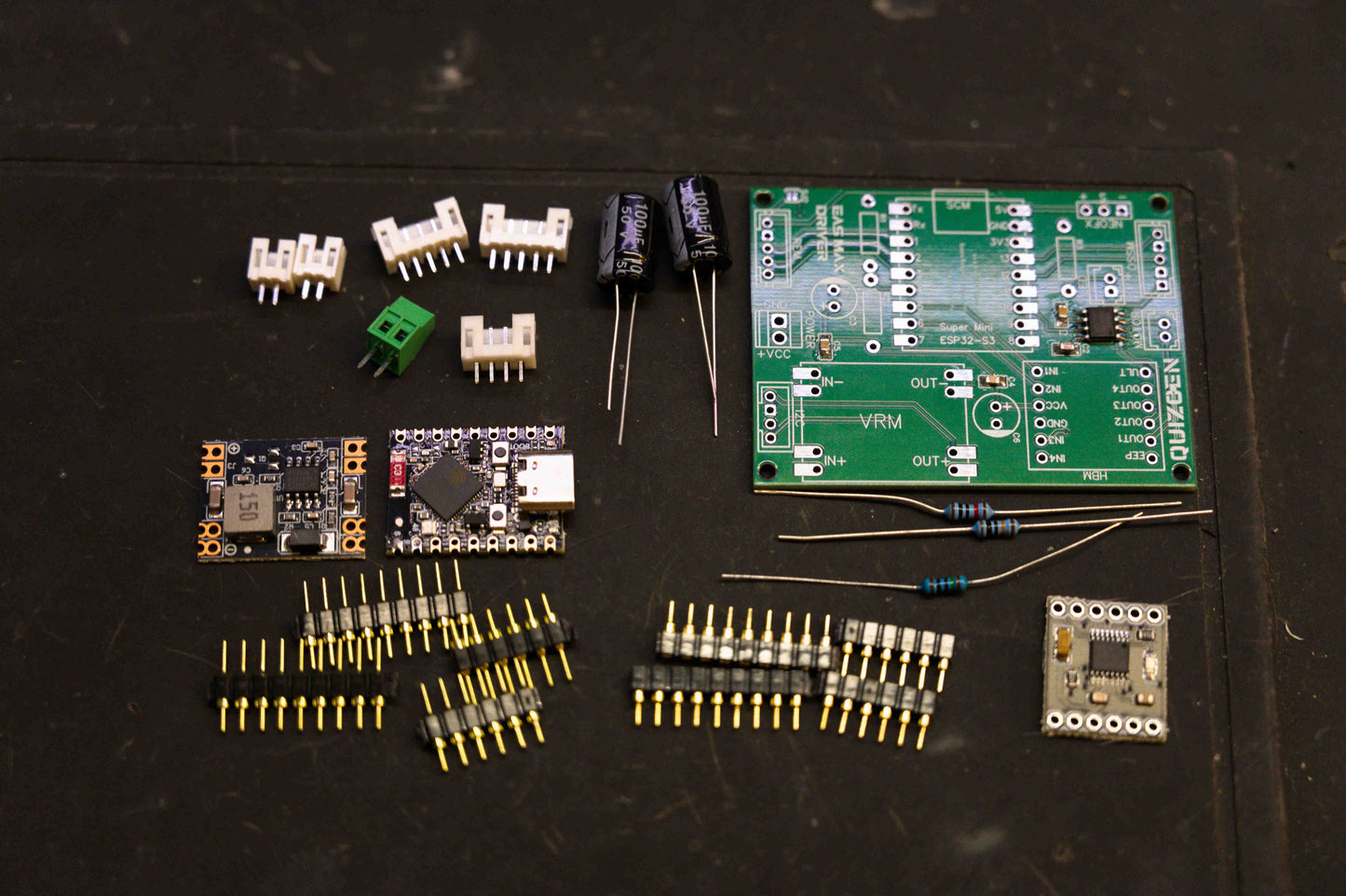

FULL ELECTRONIC KIT
SMD components pre-soldered + all through-hole components included — ESP32-S3 SuperMini, DRV8833, voltage regulator, and all remaining PCB parts. Just solder everything together and you're ready to build.
PCB SPECIFICATIONS +
MicrocontrollerESP32-S3 SuperMini
Motor DriverDRV8833 dual H-bridge
AssemblyAll through-hole — no SMD resistors
Power Input7.4V LiPo via Deans connector + onboard voltage regulator
ConnectorsPH 2.0 (motor, display, encoder, optical sensor) — screw terminals (power) — 2.54mm headers (ESP32-S3, DRV8833)
MotorDC motor via PH 2.0 (high-torque, 40kg servo class recommended)
Display0.96" OLED via PH 2.0 (not included)
InputRotary encoder via PH 2.0 (not included)
BB CountingOptical sensor via PH 2.0 (not included)
FirmwareFree for Discord members — see firmware product page
WHAT'S IN EACH VERSION +
COMPONENT BAREBONE SMD FULL KIT
PCB (bare) ✓ ✓ ✓
SMD components pre-soldered — ✓ ✓
ESP32-S3 SuperMini — — ✓
DRV8833 motor driver — — ✓
Voltage regulator — — ✓
All through-hole connectors & headers — — ✓
NOT INCLUDED — SOURCE SEPARATELY +
  • DC motor (40kg servo class, modified for continuous rotation)
  • 0.96" OLED display
  • Rotary encoder
  • Optical BB counting sensor
  • 7.4V LiPo battery + Deans connector
  • 3D printed parts — sold separately as the EAS MAX STL file pack
  • Firmware — free for Discord members via the EAS MAX Firmware product page

Full parts list with sourcing links: buymeacoffee.com/quizcen/eas-max-complete-parts-list

WARRANTY & LIABILITY
The PCB carries a 14-day warranty covering manufacturing defects from the date of delivery. This does not cover solder joints, pads, traces, or any damage caused during assembly. If you damage the board while soldering — lifted pads, bridged joints, overheated components — that is not covered. I offer these kits so you can build it yourself without having to buy PCBs in bulk. Handle with care.
FIRMWARE

Firmware is free for all Discord members. Head to the EAS MAX Firmware product page and apply the discount code found in #eas-max-feedback on Discord to claim it for free.

Discord: discord.com/invite/XFdMX947JP

This PCB kit is sold for personal DIY use only. You may not resell, redistribute, or commercially produce units based on this design. Purchasing this kit does not transfer design rights or license you to manufacture for others.
